Titanium Goat
Vortex Titanium stoves
email: info@titaniumgoat.com
The Vortex stove  is the most durable and efficient,  packable stove available.  From the computer designed and
built titanium body, that delivers  superior heat transfer* and amazing corrosion resistance**  To the
ingenious***  roll-up pipe,  the Vortex delivers performance.  With features like a fully adjustable damper**** to

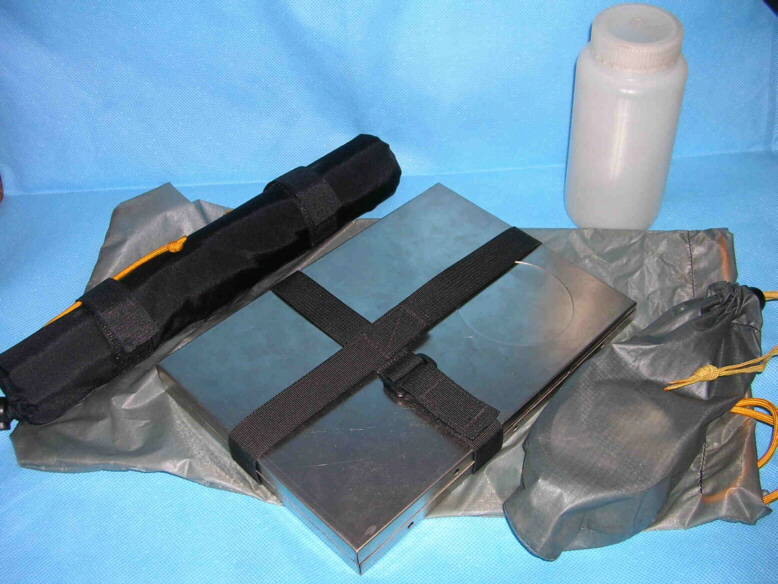

dial in your burn, light weight snow platform standard,  and an ultra-lite storage system that allows you to pack
components separate or all together, you can't go wrong. The Vortex will heat your tent and cook your dinner
better than anything comparable.  Now available with titanium pipes.

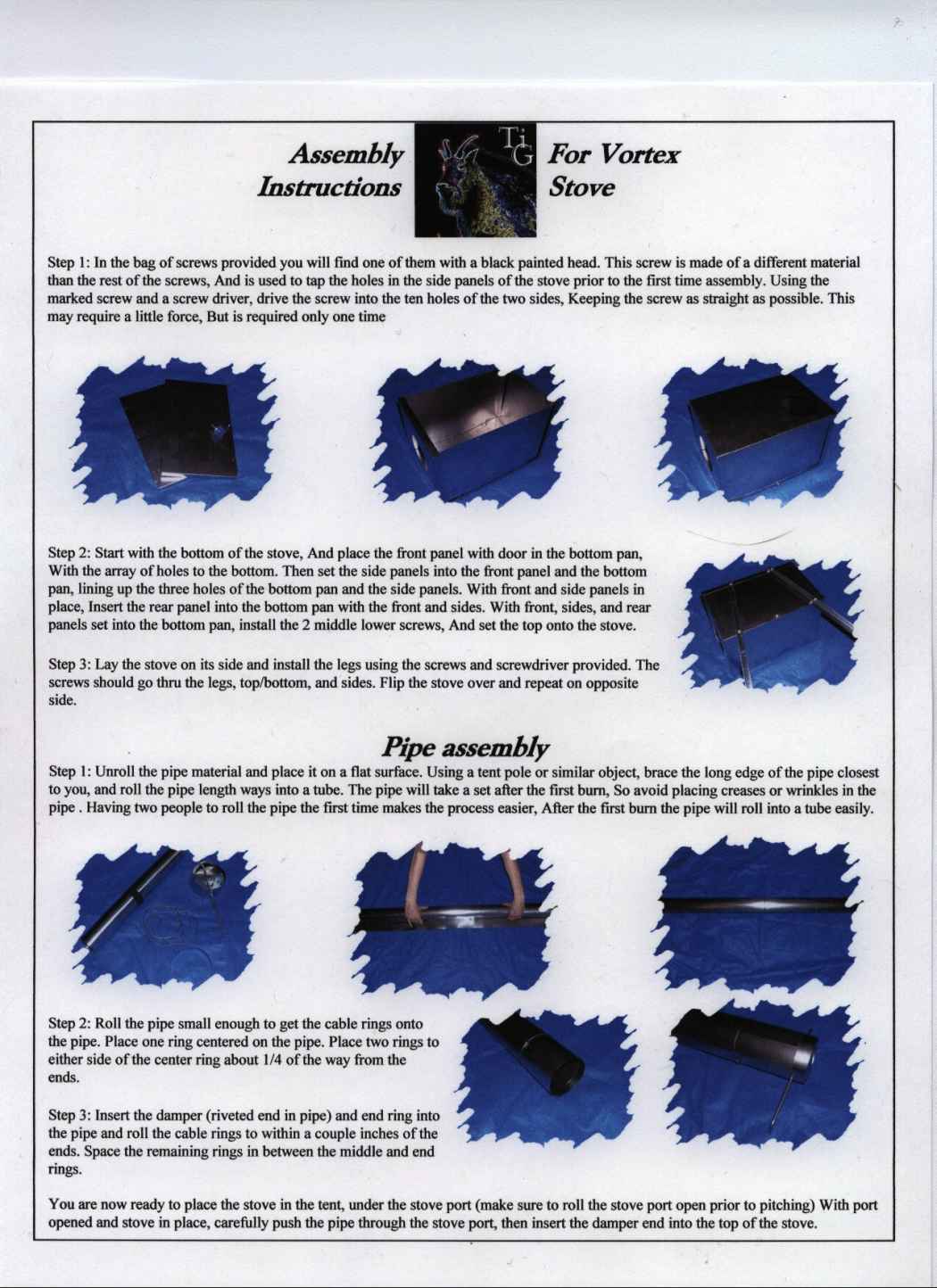

Click here for assembly instructions

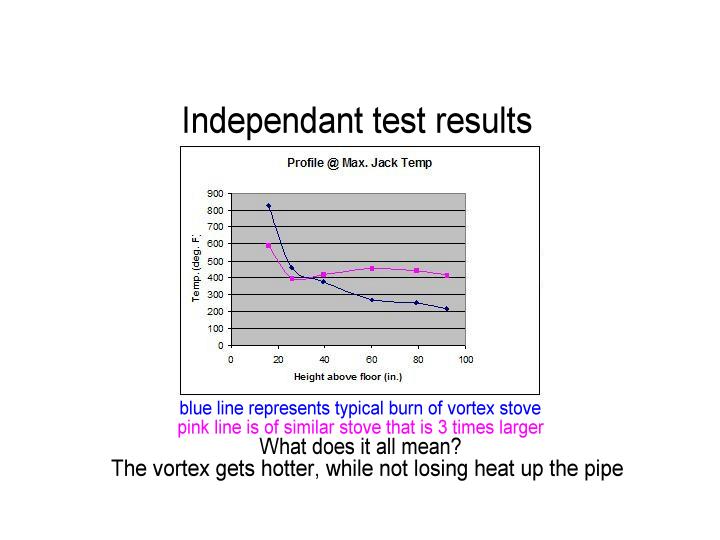

*Boil times are greatly improved over comparable stoves, titanium efficiently radiates heat.
**Titanium is many times more durable and corrosion resistant than stainless steel.
***Russian origins.
****Real stoves have dampers for effective and efficient burning.
Stove Specifications
With stainless pipe
With titanium pipe
Small Stove:
Dimensions:     6"x 7"x 10" fire box, 11" tall when assembled, with 6.5'
stove pipe.  Fire box takes down to 1"x 7"x 10" with the pipe rolling up to
2" diameter, 12" long.  Comes with 6.5' pipe for use in the Vertex 6.5.

Weight:     2lbs, 14oz  with stainless pipe.    2lbs, 8.5oz  with titanium pipe
Price:      $300 with stainless pipe,   $340 with titanium pipe. In Stock
Large stove:
Dimensions:    7"x 8.5"x 15" fire box, 11" tall when assembled, with 8'
stove pipe.  Fire box takes down to 1"x 8.5"x 15" with the pipe rolling up
to 2" diameter, 12" long.  Comes with 8' pipe for use in the Vertex 8.

Weight:     4lbs, 2oz  with stainless pipe.   3lbs, 7oz  with titanium pipe.
Price:     $400 with stainless pipe,   $450 with titanium pipe  In Stock

Out of Stock... Expected to be available  6/10/09
We now have titanium stove pipes available for the stoves.  These pipes have several advantages over the stainless
steel pipes. The first is of course weight, the titanium pipes are 30% lighter than their stainless counter parts.  While
being 30% lighter, these pipes are also stronger, the titanium pipes are 20% thicker than the stainless pipes.  So not only
are they lighter, stronger, and last a life time, the titanium pipes are also more efficient.  Titanium transfers heat far better
than stainless, so by using the titanium pipe, you get more heat radiated into your tent, rather than lost up the pipe.
We can make up pipes any length.  Email us for details.
Accessories and Options
Folding Legs: These are nice if you haul your
gear with a sled, or use pack animals and are not
concerned about space. They also work good in the
snow and only add 2.5oz in place of standard legs.
Only available for the small stove.

Price:  $25
Out of stock
Stove boots: These sew in stove boots allow you to
put a stove in other suitable tents. Note: not all tents
are stove compatible. If you can provide the angle of
your tent or its dimensions, we can cut the proper
elliptical hole in your boot for you.

Price: $40
Disclaimer: Stoves are HOT, serious
injury and property damage can occur.
Manufacturer takes NO responsibility for
injury or property damage. Do not leave
stoves unattended. Keep children and
pets away from hot stoves. Have fun
and be safe.
