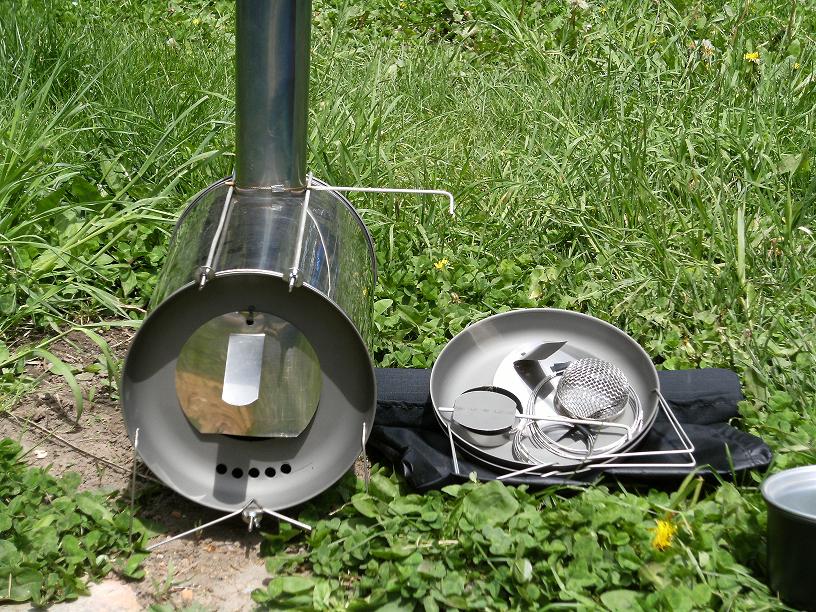

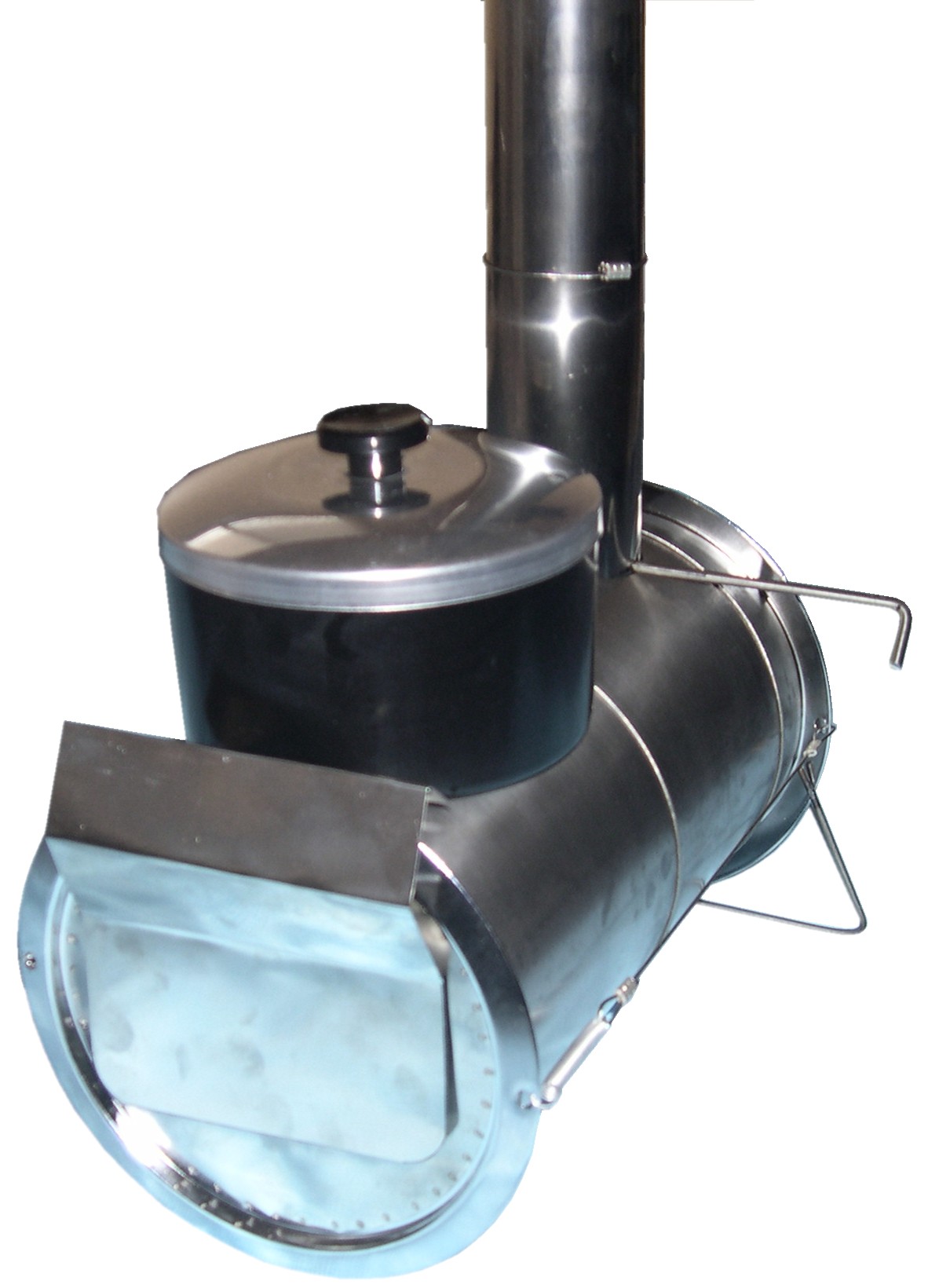

The Vortex Cylinder Stove, takes down smaller, weighs less, and it puts out more heat than stoves twice its size. While
wood burning stoves are not what some would call "ultra light", this one is about as light as they get.  While not as bomb proof
as our Vortex box stove, the titanium body section, cylindrical shape, and damper, make this stove burn very efficiently.  The
Vortex Cylinder Stove is very basic.  Its been stripped down to pure light weight function, while still retaining big performance.
You get the same roll up pipe that is on our box stoves, but in a smaller diameter (2-3/8" vs 3"), along with the same great heat

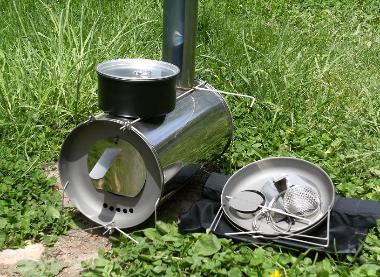

transfer properties of titanium .  How do you cook on a round top stove?  No problem.  The 2 titanium support rods across the
top of the stove will support over 5 lbs.  The lack of full contact  means it's not as efficient for cooking as a flat top stove, but it
still works.  We recommend using the stove without a spark arrester, the damper works fine.
If you want a spark arrester,
order one
here
Titanium pipes:  We have been using titanium pipes on our stoves since 2006.  These pipes have several advantages over
the stainless steel pipes (cost not being one of them).  The first is of course weight.  The titanium pipes are 30% lighter than
their stainless counter parts.  While being 30% lighter, these pipes are also stronger.  The titanium pipes are 20% thicker than
the stainless pipes.  So not only are they lighter, stronger, and last a life time, the titanium pipes are also more efficient.
Titanium transfers heat far better than stainless, so by using the titanium pipe, you get more heat radiated into your tent, rather
than lost up the pipe.

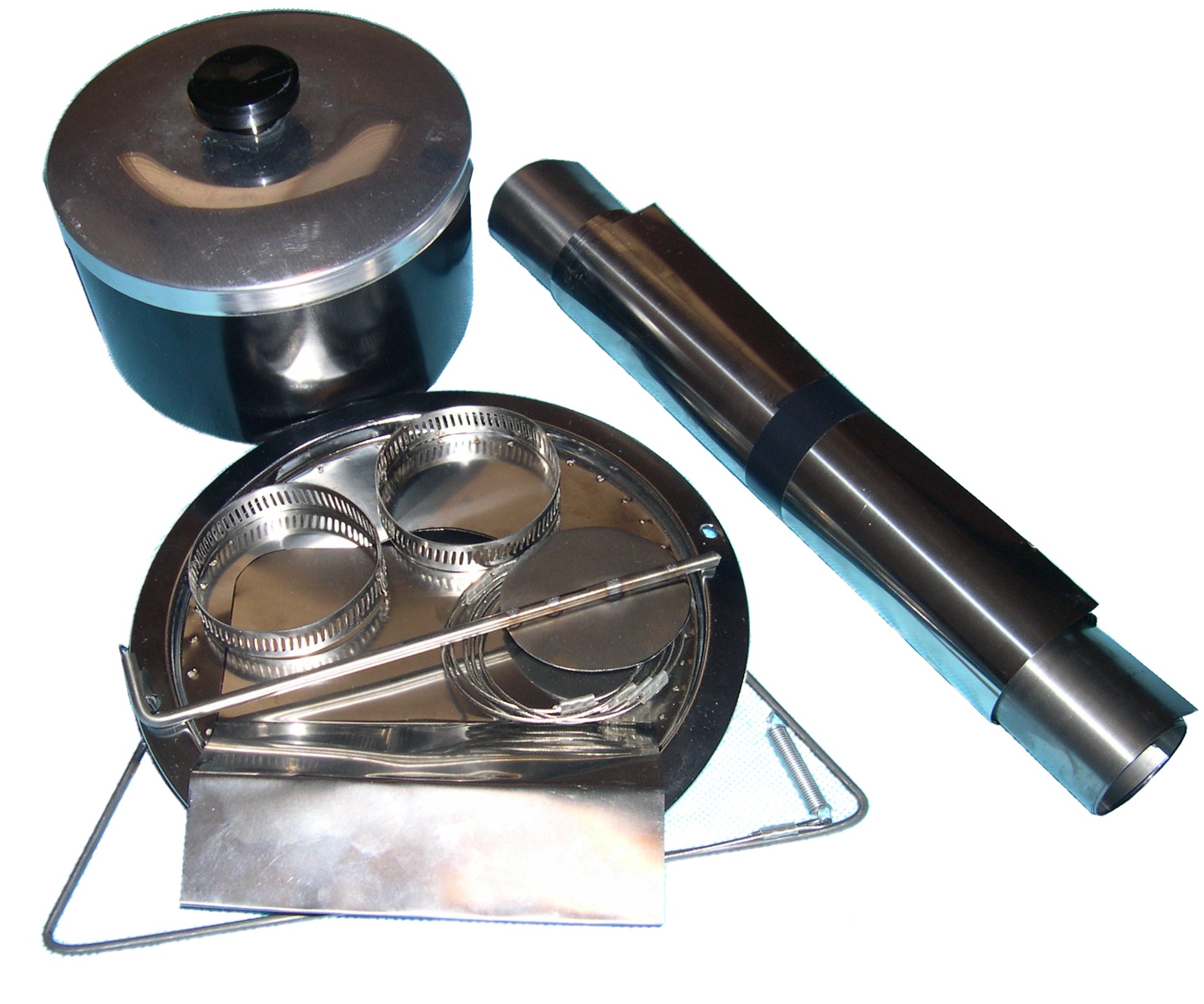

Features:

- Roll up Stove Pipe (2-3/8" dia)
- Ti Ends
- Ti Roll up Body
- Ti Damper
- Ti Support Rods
- Ti Legs Front & Rear
- Roll up fire resistant Protection
Platform
- Storage Bag for Ends & Parts
- Wrap for Pipe, Stove Body, Platform

Options:
Stove Length  ...12" ...16" ... 22"
Stove Specifications:
  With titanium pipe
12" cylinder stove

Weight:
 12oz, Stove body and parts, 4oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe, .  1lbs 10oz total weight
with 7' Ti pipe
Capacity:   ~485 cubic inches   7.5" X 12"

Price:       $275 with 7ft titanium pipe
.....In Stock........

Pipe Size/Price
16" cylinder stove

Weight:
 14oz, Stove body and parts, 4oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe.  1lb 13oz total weight
with 7' Ti pipe
Capacity:   ~660 cubic inches   7.5" X 16"

Price:       $290 with 7ft titanium pipe
......In Stock.......
..... New for 2013 ....
Pipe Size/Price
22" cylinder stove

Weight:
 18oz, Stove body and parts, 4oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe.  2lbs total weight with
7' Ti pipe
Capacity:   ~930 cubic inches   7.5" X 22"

Price:       $310 with 7ft titanium pipe
......In Stock.......

Pipe Size

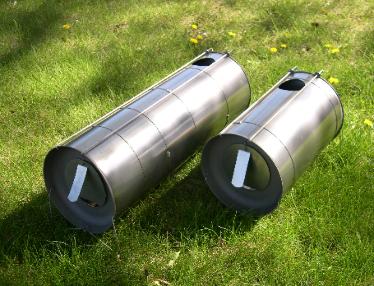

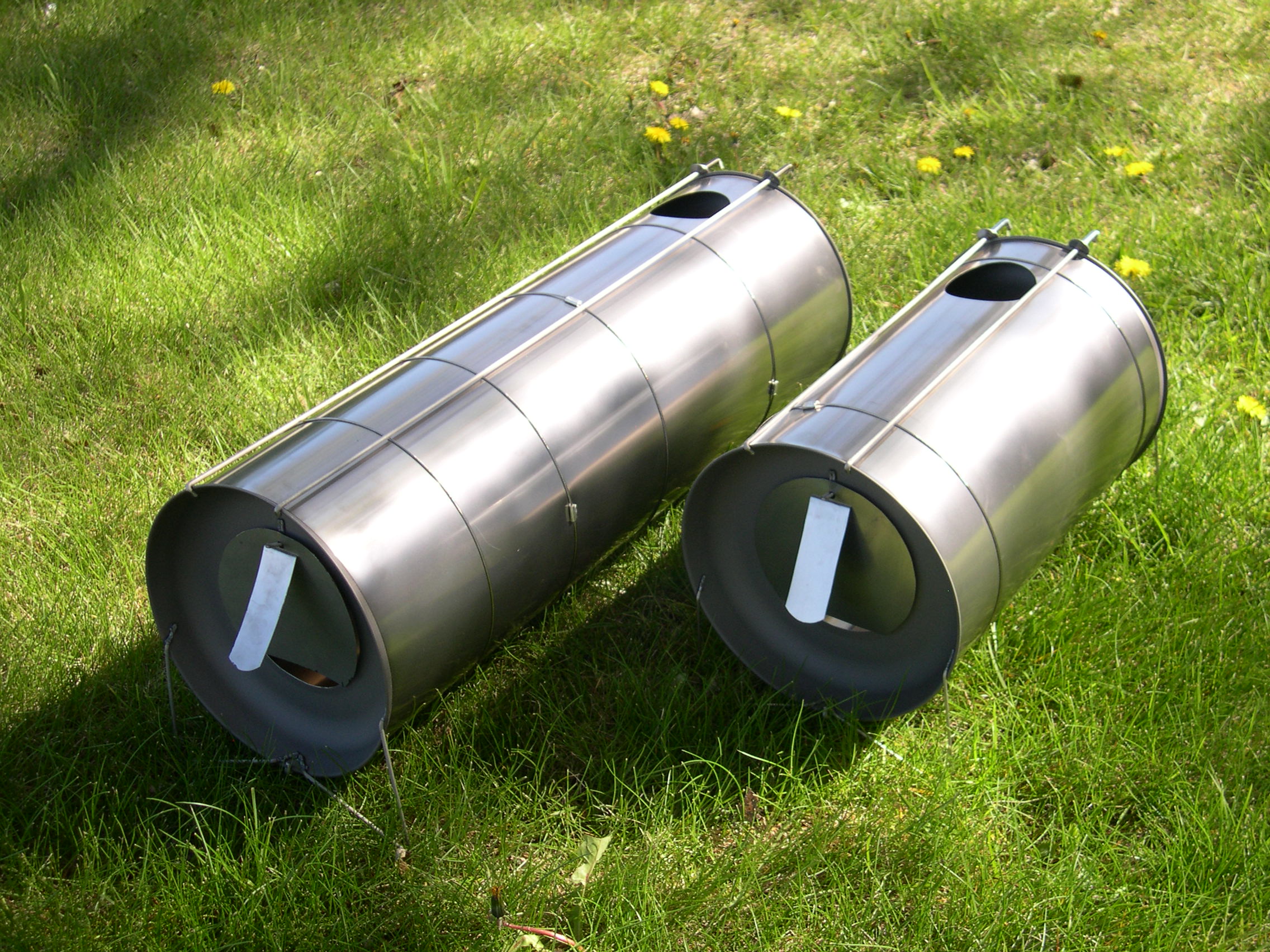

New for 2011 we have a 22"
version of the cylinder stove.
The 22" cylinder stove is the
same as the 12" cylinder stove
with a few exceptions. Besides
being longer, the 22" C-Stove
has a bit stronger legs, 3 body
cables, and four body rods.
One of the big advantages of
the 22" C-Stove is that you burn
longer wood, this means less
work making smaller wood for
your stove to burn. And of
course the biggest difference is
longer burn times, and more
heat.  New for 2013 is a 16"
version.
