Assembly of the vortex
stoves is the same
regardless off size. The
following images are of a
large stove being
assembled.

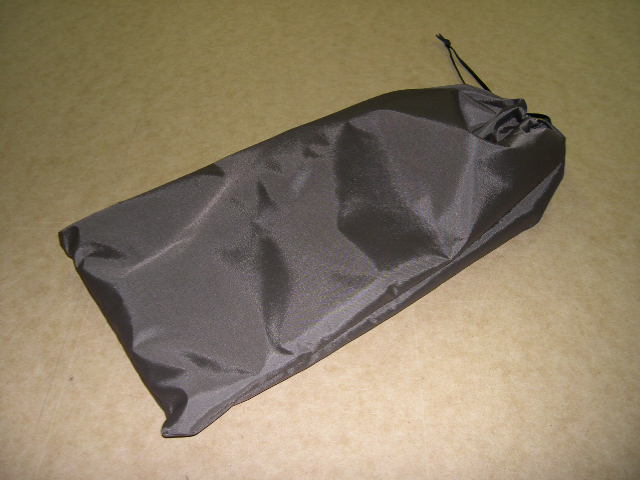

Bag with all the goodies

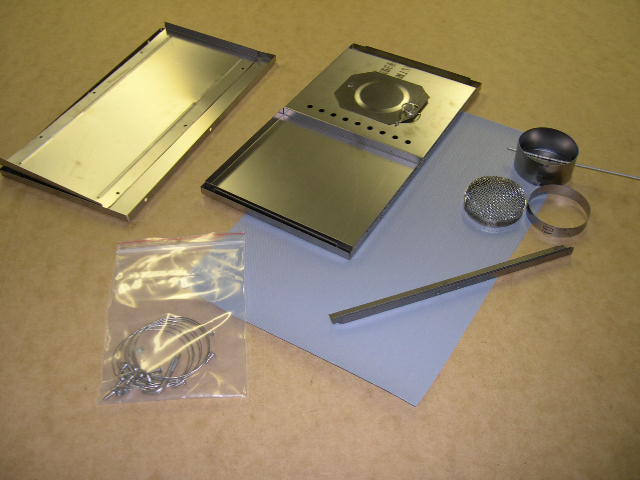

Whats inside the bag

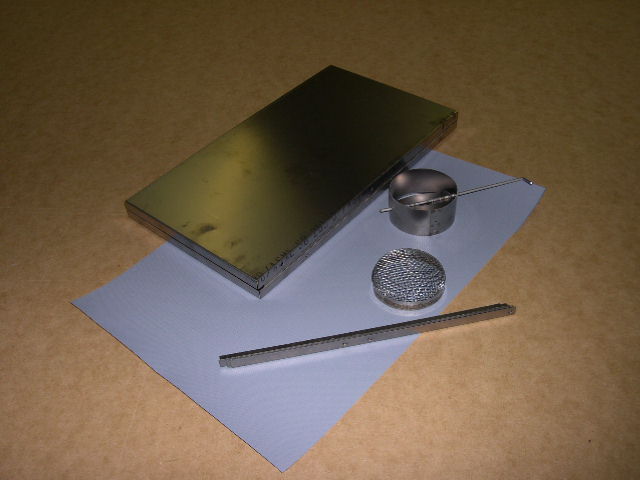

No packaging or pipe
Opened up

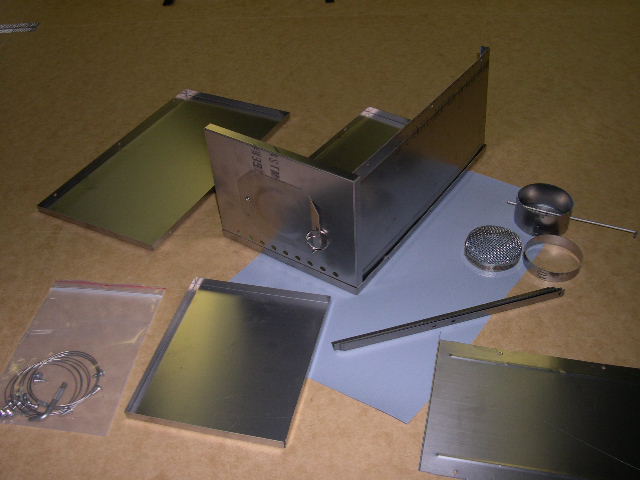

Start assembly

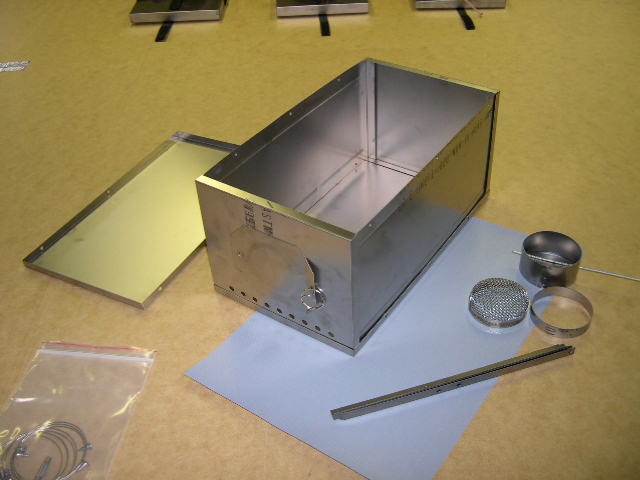

More assembly
Install lower middle screws
to hold everything together

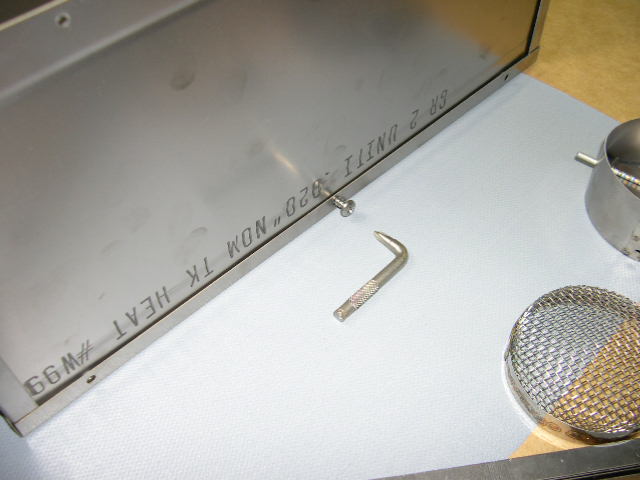

Install upper middle screw

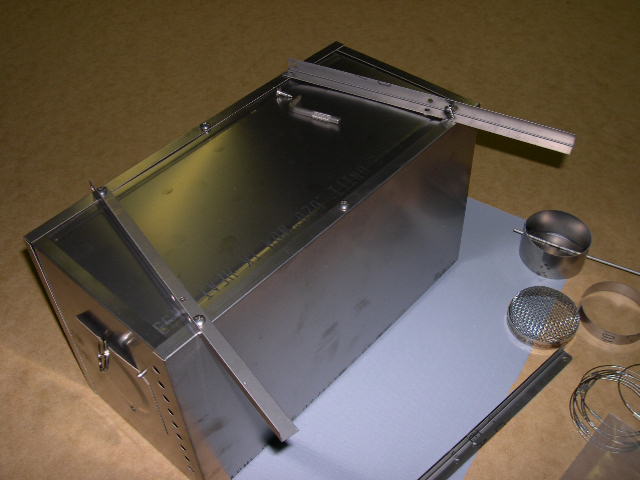

Install remaining screws,
securing the legs

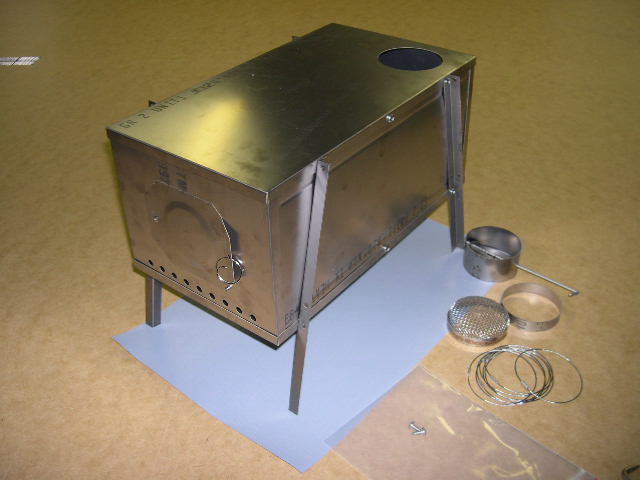

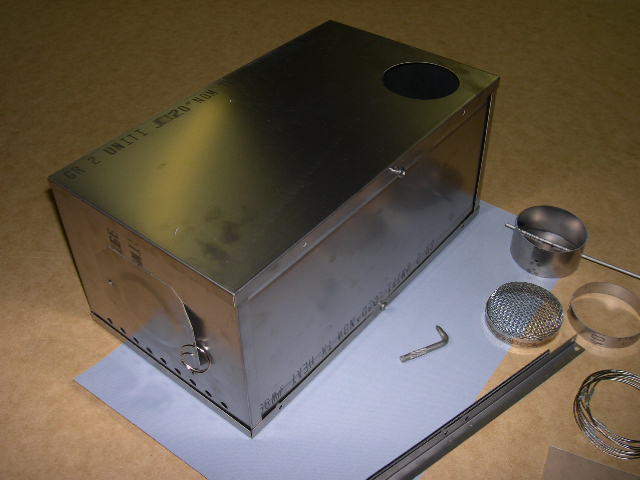

The stove is assembled
Now for the pipe

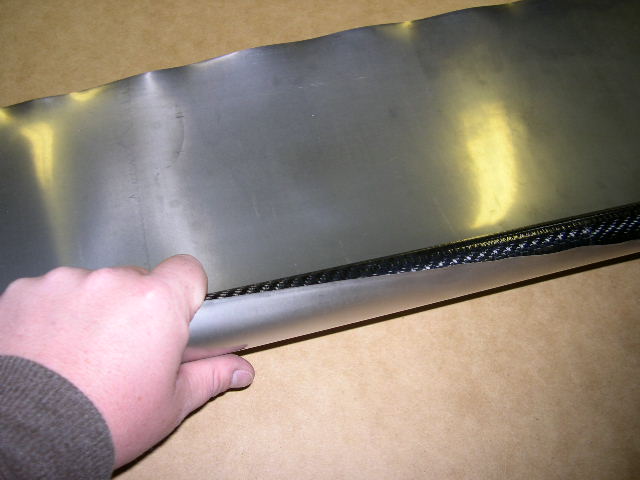

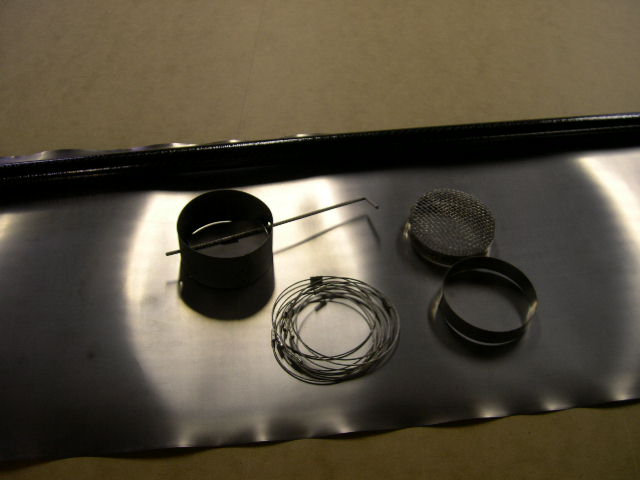

Unroll the pipe

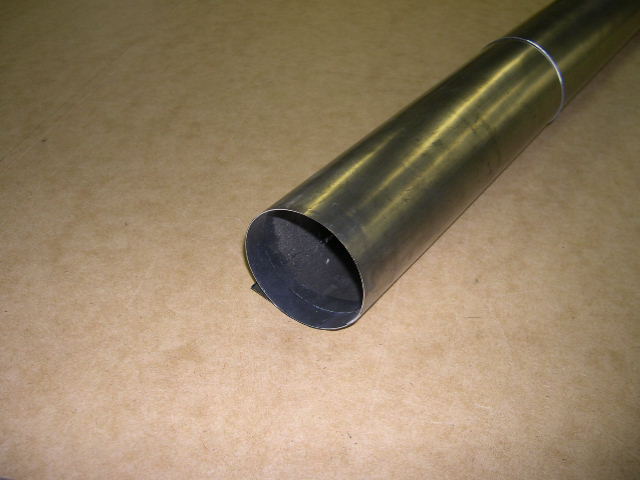

Using a tent pole, roll the pipe
length ways. Get a hand
doing this the first time
With help,place cable
rings on the pipe.

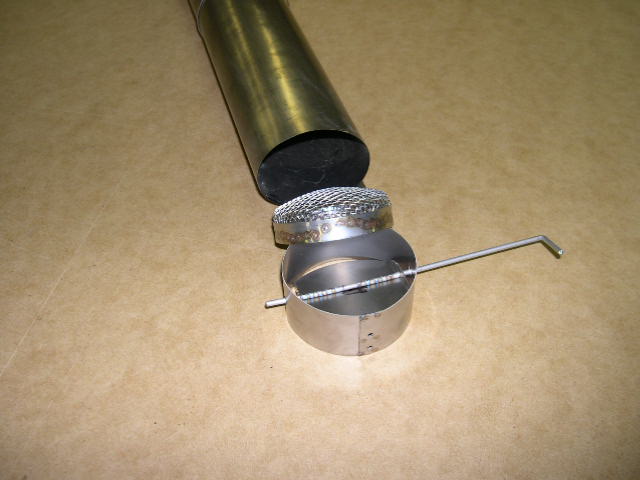

Install damper and spark
arrestor. Spark arrester gos
above damper.

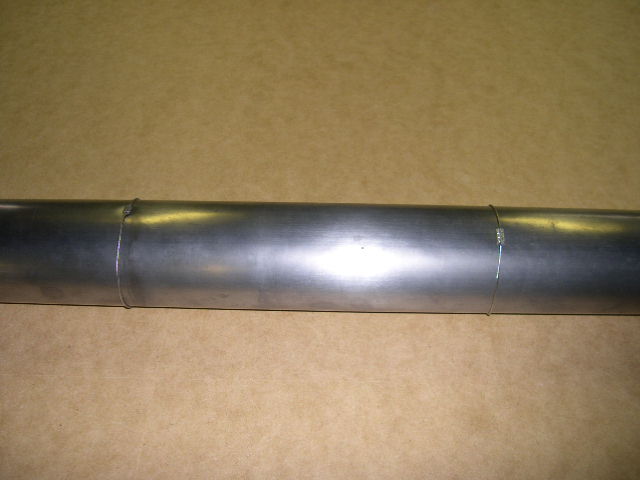

Move cable ring toward the
damper end to secure it.

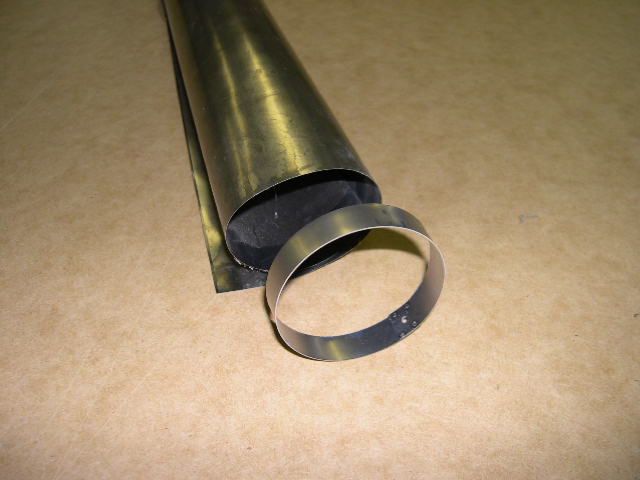

Install ring at the top of
the pipe.
Move cable ring toward
the end of pipe to secure
the end ring.

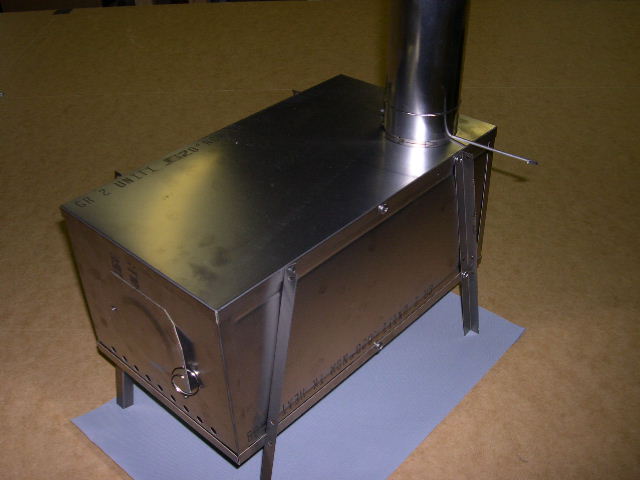

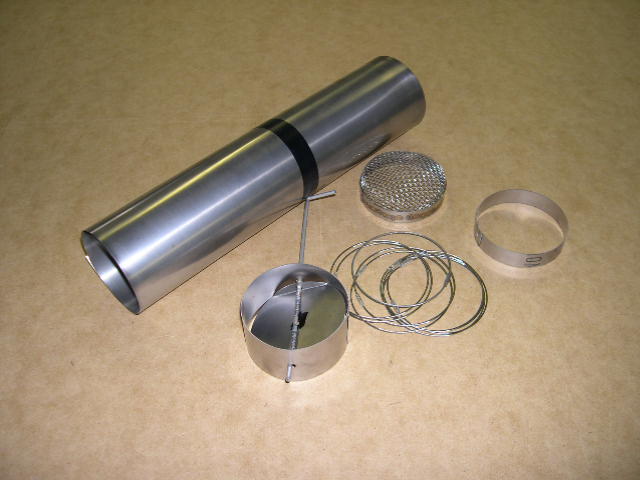

Place pipe assembly into stove
and your ready to burn.
